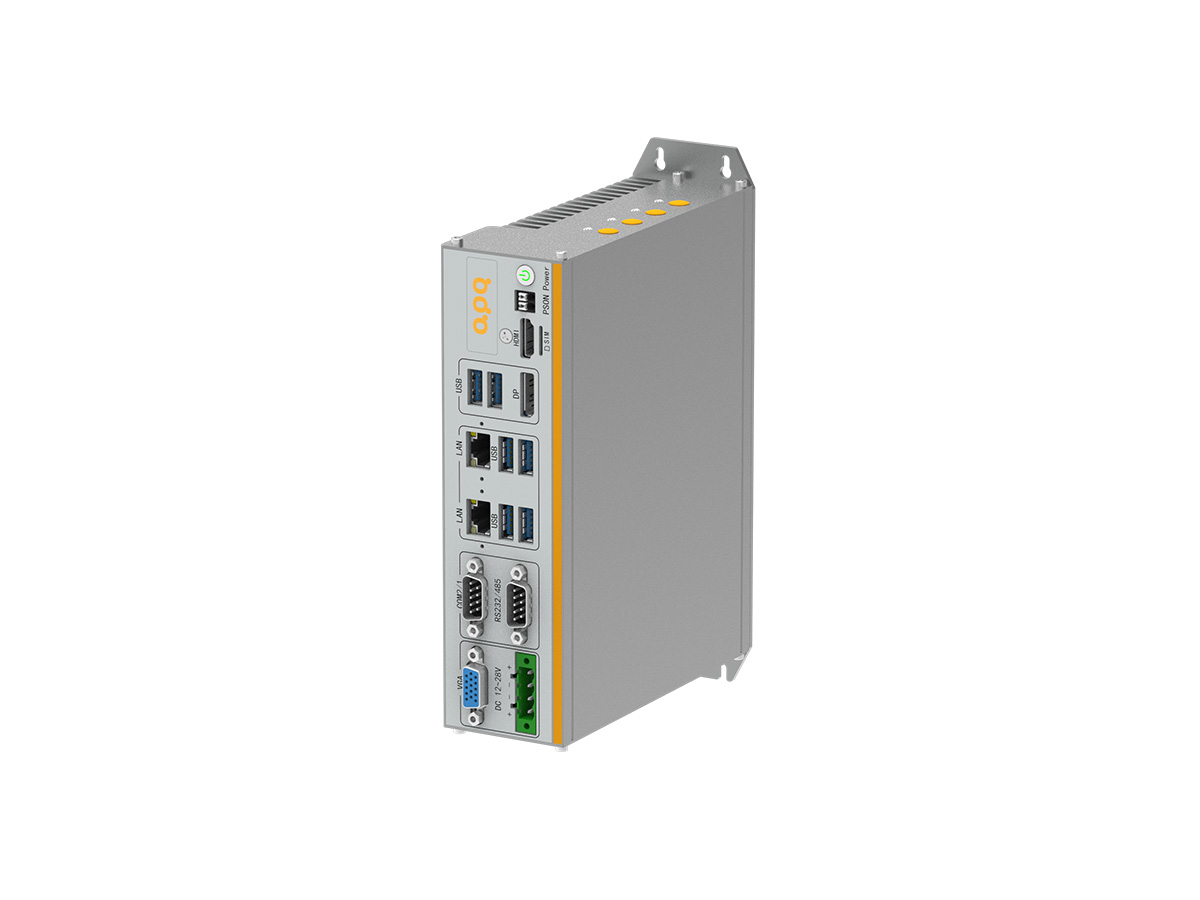

阿普奇AK7A2-Q170&H110 | 運動控制器/嵌入式工控機/Intel 6~9th桌面CPU
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
|
Model |
AK7170A2 |
AK7110A2 |
|
|
CPU |
CPU | Intel??6~9th?Generation CoreTM?Desktop Processor | |
| ? | TDP | 65W | |
| ? | Socket | LGA1151 | |
|
Chipset |
Chipset | Intel??Q170 | Intel??H110 |
|
BIOS |
BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 2 * SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz | |
| ? | Max Capacity | 32GB, Single Max. 16GB | |
|
Graphics |
Controller | Intel??HD Graphics530/Intel??UHD Graphics 630(Dependent on CPU) | |
|
Ethernet |
Controller | 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps) |
1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280) | 1 * M.2 Key-M (SATA3.0, 2280) |
|
Expansion |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0) 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) |
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) |

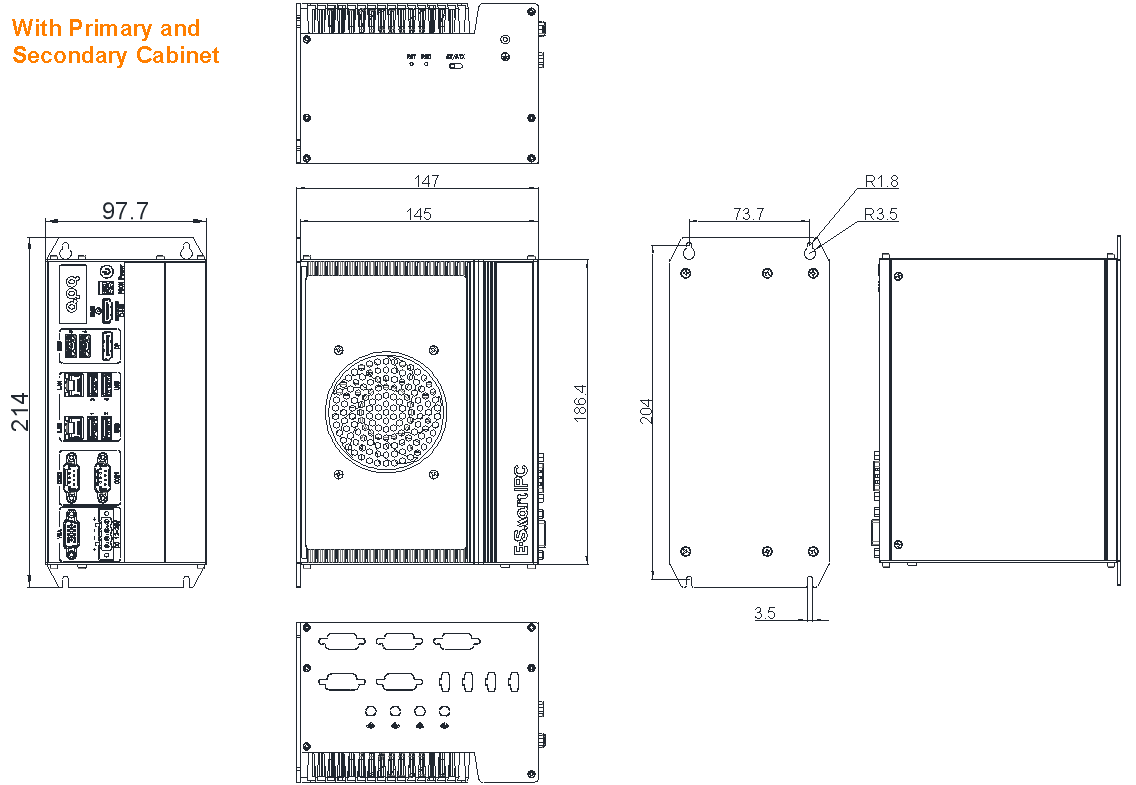

| ? | Optional Primary Cabinet | 1A/1B/1C/1D/1E/2A/3A | 1E |
| ? | Optional Secondary Cabinet | 1E | 1E |
|

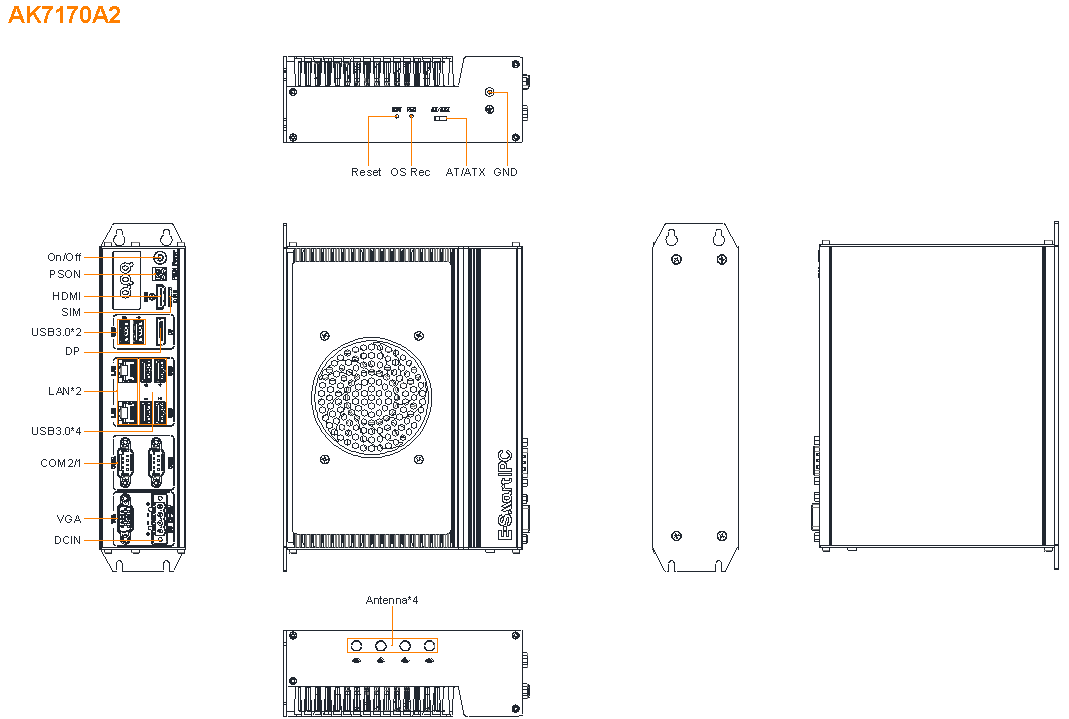

Front I/O |
USB | 6 * USB3.0 (Type-A) | 4?* USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
| ? | Serial | 2 * RS232/485 (COM1/2, DB9/M, Full lanes) | |
| ? | Display | 1 * HDMI: max resolution up to 4096*2304 @ 24Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
| ? | Ethernet | 2 * RJ45 | |
| ? | Power | 1 * DC Power Input | |
| ? | SIM | 1 * Nano SIM Card slot (Mini PCIe module provide functional support) | |
| ? | Button | 1 * Power Button + Power LED 1 * PS_ON Connector |
|
|

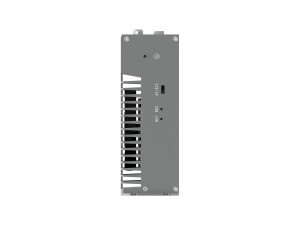

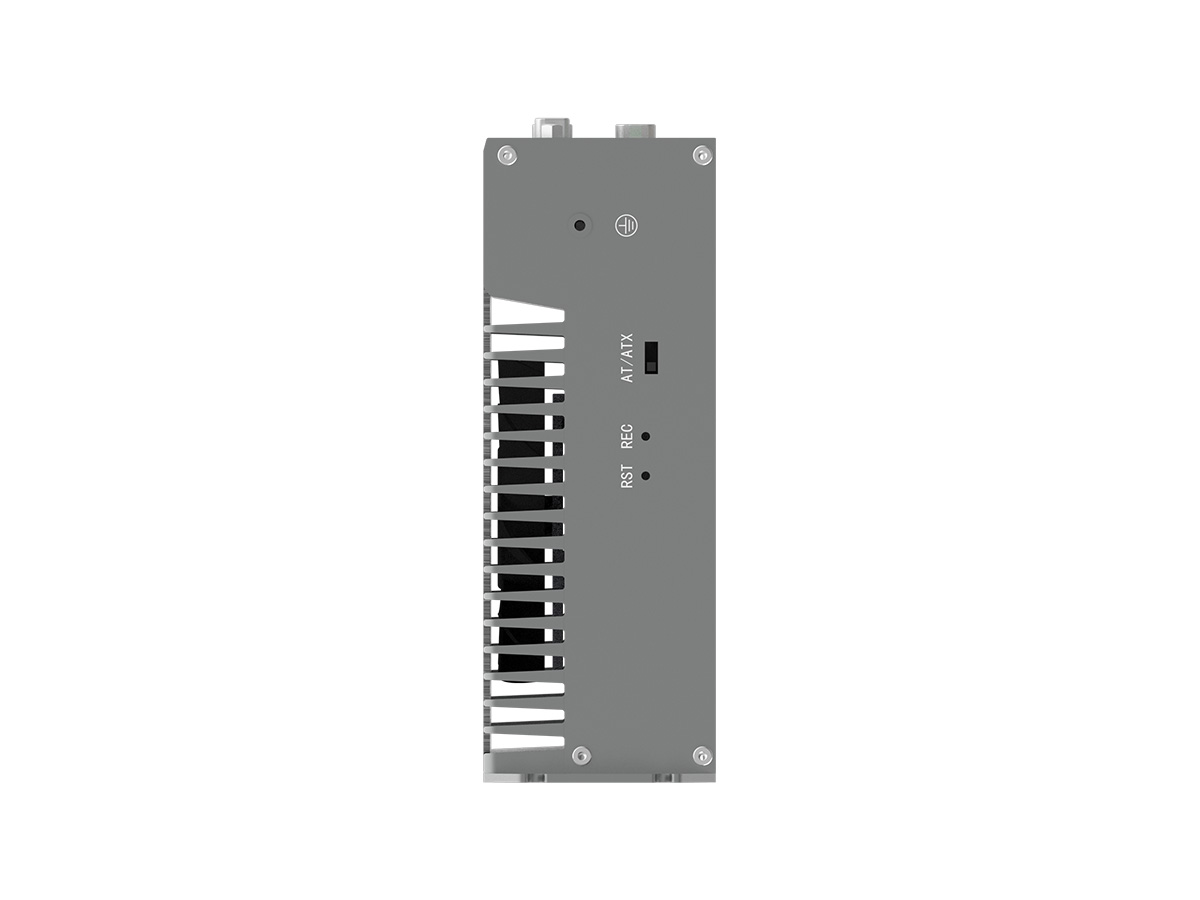

Bottom I/O |
Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | |
| ? | Button | 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|
|
Power Supply |
Type | DC | |
| ? | Power Input Voltage | 12 ~ 28VDC Note：When using the light source?and POE, 24V input must be used. |
|
| ? | Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | |
| ? | RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core?: Windows 7/10 8/9th Core?: Windows 10 |
|
| ? | Linux | Linux | |
|
Watchdog |
Output | System Reset | |
| ? | Interval | Programmable via Software from 1 to 255 sec | |
|

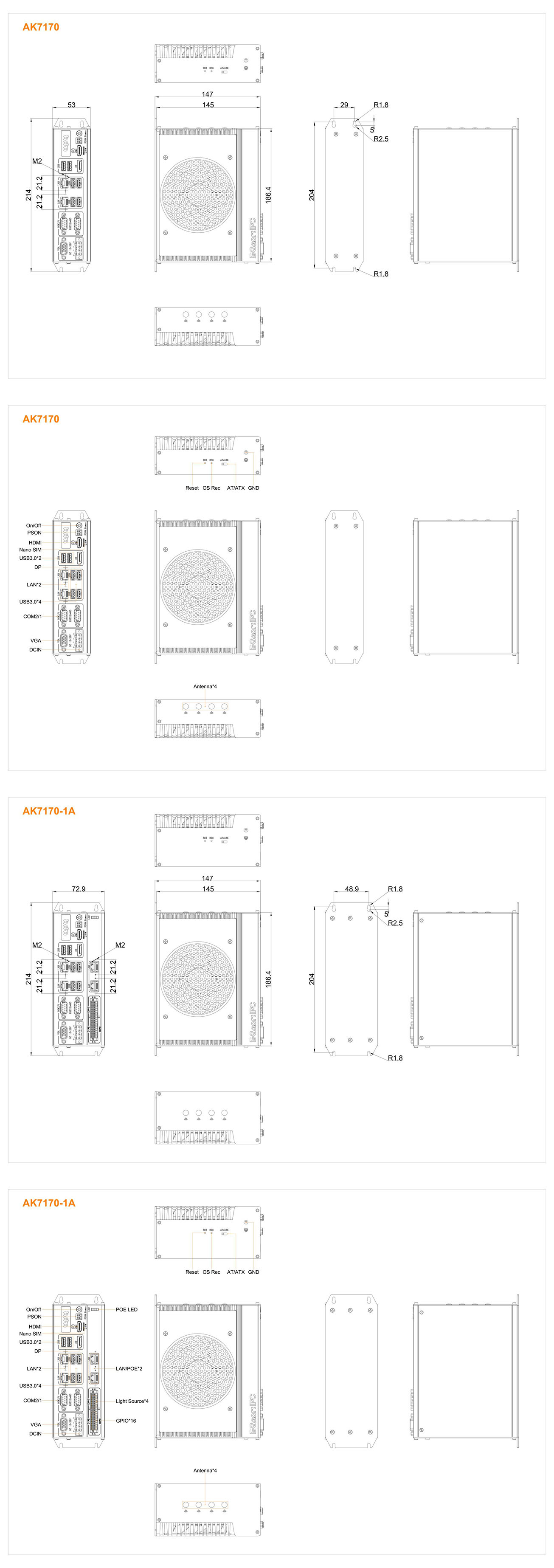

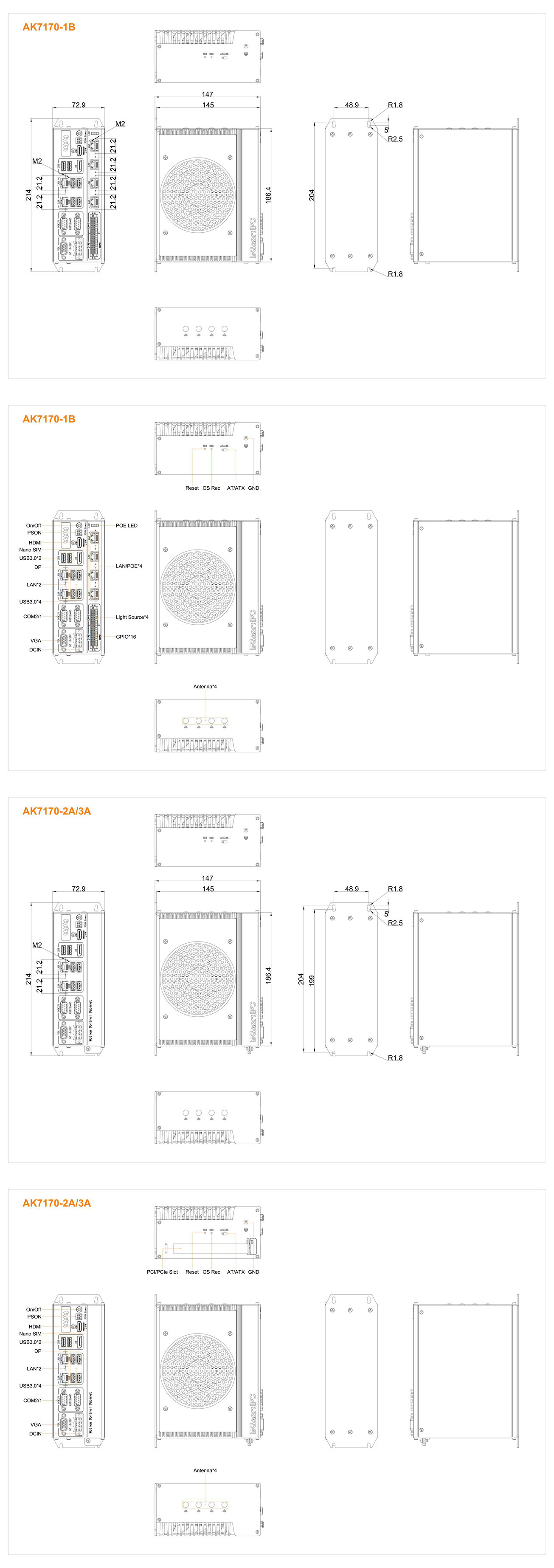

Mechanical |
Enclosure Material | Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC | |
| ? | Dimensions | 53mm(L) * 145mm(W) * 186.4mm(H) | |

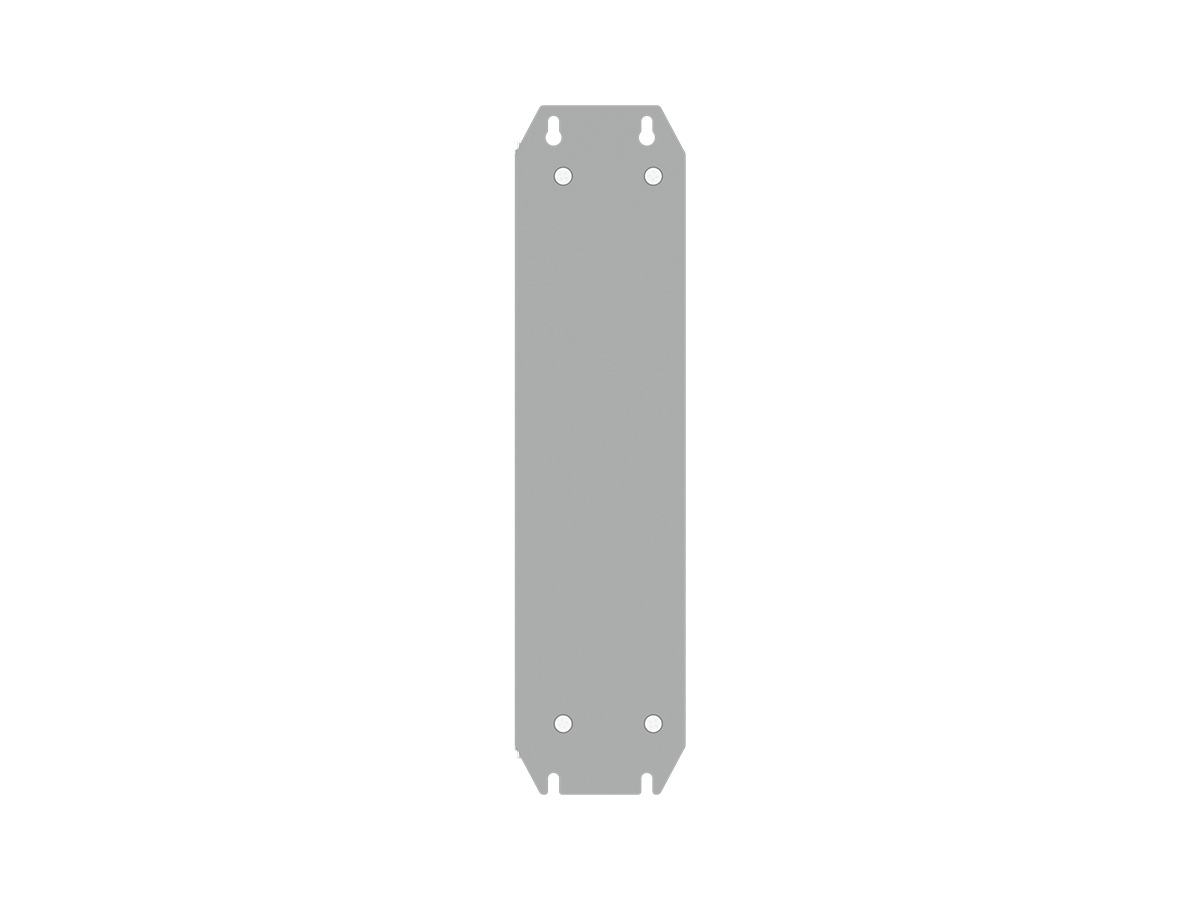

| ? | Mounting | Wall mounted, DIN, Desktop | |
|
Environment |
Heat Dissipation System | PWM Air Cooling | |
| ? | Operating Temperature | -20~60℃?(Industrial SSD) | |
| ? | Storage Temperature | -40~80℃?(Industrial SSD) | |
| ? | Relative Humidity | 5 to 90% RH (non-condensing) | |
| ? | Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| ? | Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
